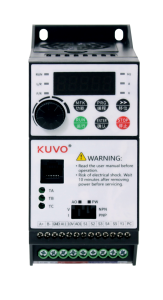

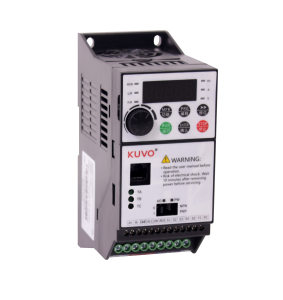

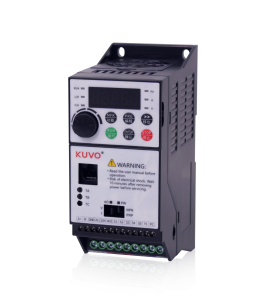

KV10 Variable Frequency Drive (VFD pump)

KV10 series Variable Frequency Drive

0.75~2.2kW(1~3HP)-220V 0.75~5.5kW(1~7.5HP)-380V

1. Smart Choice, Balancing Cost and Benefit

2. Powerful Configuration, Meeting Diverse Applications

3. Stable Operation, Ensuring Productivity

Share to:

Input	Input Voltage	200V(-10%) ~ 240V(+10%) Single-phase 380V(-10%) ~ 480V(+10%) Three-phase
Input	Input Frequency	50 ~ 60Hz
Output	Control Method	VF Control
	Frequency Range	0 ~ 300Hz
	Frequency Resolution	0.1Hz
	Output Voltage	0 ~ Input Voltage
	Carrier Frequency	1 ~ 10kHz
	Speed Regulation Range	1:50
	Overload Capacity	150% rated current for 1 minute
Control Features	Torque Boost	0.0% ~ 30.0%
	Acceleration/Decel Time	0.0 ~ 6553.5 s
	VF Curve Modes	0: Multi-point V/F 1: 2.0-exponent Curve 2: 1.7-exponent Curve 3: 1.2-exponent Curve
	Jog Control	Jog frequency range: 0.00Hz~5.00Hz Jog acceleration/deceleration time: 0.0s~600.0s
	DC Braking	Braking Frequency: 0.00Hz ~ Max Frequency Braking Time: 0.0s ~ 60.0s Braking Current: 0.0% ~ 100.0%
	Dynamic Braking	Built-in Braking Unit (Optional) Energy Consumption Braking Ratio: 0.0% ~ 100.0%
Advanced Functions	Built-in PID	Enables closed-loop process control systems (e.g., constant pressure, temperature control) through real-time feedback adjustment
	Built-in Multi-Speed & Simple PLC	Supports up to 16 preset speed segments via internal PLC programming or external control terminals
	Programmed Acceleration/Deceleration Times	Provides 4 independent acceleration/deceleration time groups for flexible operation mode selection. Typical applications include staged startup/shutdown and load-adaptive speed regulation
	Protections	Overheat/Overload/Overcurrent/Overvoltage/Stall Prevention/Short Circuit Protection
	Swing Frequency Control	Swing Frequency Control (Textile Industry Applications)
	Fixed-Length Control	Fixed-length Control
	Frequency Reference	Digital Panel/Analog Input/Communication/PID
	Command Sources	Panel Operation/Terminal Control/Communication
	Fieldbus	RS485 Interface (MODBUS-RTU Protocol)

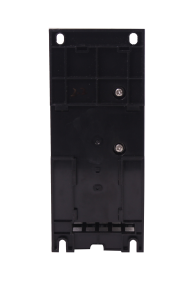

Installation	Installation	Support wall-mounted
	Protection class	IP20
	Working temperature	-10℃~+50℃; after exceeding 40℃, the derating will be reduced by 2% according to 1℃.

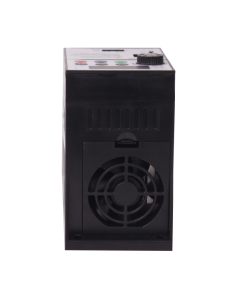

	Cooling method	Forced air cooling
	Humidity	20%~95%RH（condensation free）
	Installation environment	Less than 1000m; after exceeding 1000m, the amount will be reduced by 1% according to 100m.
